Properties of Copper Alloy SB111 C70600 90/10 Cu/Ni Tubes

Table of Content [Hide]

ASME SB111 This specification establishes requirements for seamless tube and ferrule stock of copper and various copper alloys up to 3 1/8 in. (80 mm), inclusive, in diameter, for use in surface condensers, evaporators, and heat exchangers.

Chemical Composition

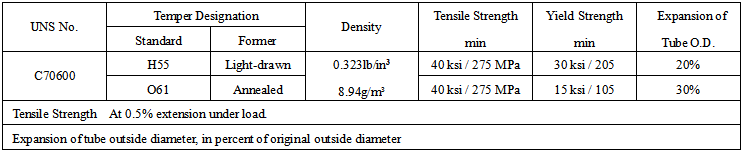

Mechanical Properties

Thermal Properties

Specific heat capacity : 0.38 J/g.°C

Thermal conductivity : 40 W/mK @ 20 °C ; 278 BTU.in/hr.ft2.°F @ 68 °F

Hot working temperature : 760 - 816°C (1550 -1750°F).

Annealing temperature : 593 - 816°C (1100 - 1500°F).

Applications

UNS C70600 tube possesses some good mechanical properties, which includes good resistance to stress corrosion cracking.Besides, it has good corrosion resistance, especially in sea water. The copper alloy tube has a wide range of applications generally used for oil, petrochemical, power station and other industries, including but not limited to as follows.

Oil and Gas Industries

Power Industries

Sea Water Condenser Systems

Petrochemical Industries

Shipbuilding and Repair,etc.

Yuhong Group is a leading copper alloy tube manufacturer and can offer high-quality asme sb111/astm b111 tubes as follows:
